Our Projects

We've worked with them all, from highly automated enterprises that use unique machinery in their manufacturing processes to companies who are just getting started with automation and need step-by-step instructions. Our over 5 years of experience in consulting, concepting, prototyping, design, and integration enables us to bring the talent and resources required to develop a modern solution that best matches your objectives, no matter where your firm is on the automation spectrum. Some of out projects are as follows;

Autonomous Shopping System

Feb 2017 - Jan 2018

Automation has played a significant role in the betterment of engineering and science. This project is mainly based on PLC (Programmable Logic Controller) for automation purpose. The motivation behind the development of automatic shopping system is to save the time of customers. It will reduce the labour hired by shop owner to manage his store. Customers will place their order through HMI (Human Machine Interface). It will communicate with PLC. PLC will sort the required items according to the weight based algorithm and it will generate an output signal to pusher to hit maximum priority item to conveyer belt. The conveyor belt will deliver the required items to the customer. The biggest assistance of automation is that it will conserve labour, time, energy and improves accuracy and precision.

Machine and Motors RPM

Jul 2019 - Aug 2019

Calculated the RPMs of different Motors and converted them to meters/min using counters and pulses of encoder in PLC and integrated with HMI.
Done the same task with Proximity Sensors.

Guard Filter Cards and Punching Machine Automation

Jun 2019 - Oct 2019

Task was to upgrade three machines including 2 Cards and 1 Punching machine from relay Logic system to PLC by installing VFD's for the AC Motors and control the speed of motors from HMI. The current speed of the motors and machine was also displayed on the HMI.

The Project was successfully completed and all the machines are working fine.

Utility Monitoring System

Feb 2019 - Jan 2020

Completed the project of Utilities (Water, Steam, Energy) monitoring.
The project has more than 80 inputs and now we can see all of them on one screen and can evaluate the utilities generation and consumption.

EBM Karachi Biscuit Distribution System

Dec 2020 - Dec 2020

PLC: Siemens S7-1200
HMI: Weitek
VFD: Danfoss
Designed and commissioned project that uses sick distance sensors and distribute biscuits according to priority.

CCBPL Karachi Auto Labor Automation

Dec 2020 - Dec 2020

Design and commission auto laber APL UBS 8300 with Siemens s7-1200 & integrated the whole system with S7-400.

Pepsico Lays Multan FG Automation

Dec 2020 - Jan 2021

PLC: Siemens S7-1200
HMI: Weintek
Camera: Cognex
SCADA: Movicon
Commissioning and configuration of accordian conveyor with Cognex Insight camera for OCR application with Movicon SCADA for monitoring and reporting.

FG Conveyor System, Production Report, Decleration Report and Global Effeciency Reports Mondelez Tang Plant Hub Choki Balochistan
Dec 2020 - Jan 2021

PLC : Siemens S7 1500
HMI : TP 1200 Comfort
SCADA : Movicon Next 3.4
Designed and commissioned 96m automated conveyor system. With sleep mode on whole system in 13 minutes, traffic jam detection , Active and historical alarms and sorting from production to FGS on SKU basis.
Designed and commissioned complete auto generation of declaration and production report with hourly totaliser of global efficiency. With remote web clients on all HTML 5 supported devices.

Raftar Project FG Conveyor Unilever Lahore

Feb 2021 - Mar 2021

PLC : Allan Bradley Compact Logix L33ER
HMI : Panel View plus 1000
Designed and commissioned 126m automated conveyor system. With sleep mode on whole system in 7 minutes, traffic jam detection , Active and historical alarms and sorting from production to FGS on SKU basis. Industrial standard beacon lights with buzzers and rejection mechanism.

Raftar Project SCADA Centrallization Unilever Rahim Yar Khan

Mar 2021 - Apr 2021

SCADA Centralization: Commissioned Movicon Next SCADA for whole factory Conveyor System and Energy monitoring system. Above 3000 tags from Siemens S7-319 and S7- 414. Some other process indicators. Remote Web clients on Mobile phones.

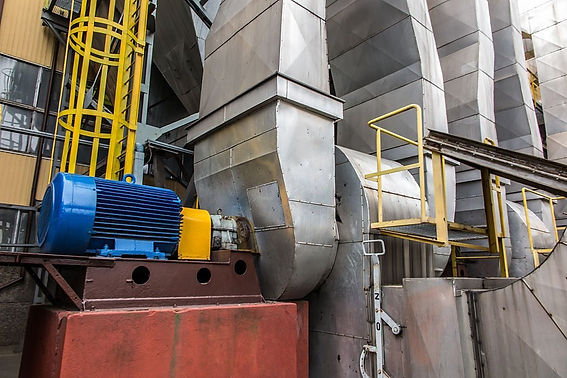

Grain Mixing

Oct 2021 - Nov 2021

Problem Statement

Grains from five different hopper need to transfer in a mixer through conveyors and then after mixing, mixture need to unload.
Before pressing start button the emergency switch (normally close) should be off and all the hoppers’ gates should be closed. Closure of gates may be detected by sensor.
After pressing start button a horn should run for 10s and then each hopper should drop specific weight on the under-hopper conveyor and then should close. Weight should be measured by weight sensor.
Under-hopper conveyor and transfer conveyor should be started immediately when hopper start dropping grains.
When all the hoppers complete dropping and grains are transferred into mixer, under-hopper conveyor and transfer conveyor should stop and mixer should run, in forward direction, for specific time given from HMI.
After completion of mixing mixer should stop and then should run in reverse direction, until mixture gets empty, to unload the mixture. Unload conveyor and long transfer conveyor should also run along mixer reverse running.
Process should wait for the start to repeat the cycle.
HMI layout should be designed for all the inputs and outputs.

Equipment Used

Domore PLC along with I/O card
Load cells
Proximity sensors
Horn
Level sensors
Hoppers
Conveyors
Grain Mixer

Actions Performed

Logic was developed in Domore programming software.
PLC, HMI and all other equipment were installed at site.
All the inputs and outputs were connected.
Functionality of the process was tested successfully.

Automated Car Parking System

Dec 2021 - Dec 2021

Problem Statement

A control system is required for a fee-paying car-parking with a limited number of places.
A driver gains access to the car park by depositing a coin in the coin box at the entry.
After depositing coin, the barrier should rise to permit entry, it should remain open for 15s and then drop again until next coin is deposited. Barrier has up and down proximity sensors.
The exit barrier should rise automatically when a departing car approaches it. When car approaches the exit barrier, it passes over inductive vehicle sensor. The barrier should rise for 25s and then should drop.
Cars entering the park should be counted. Maximum space available is for 30. When the park is full and indicator “FULL” should be ON. If cars parked are less than 30 an indicator “SPACE” should be ON.
A manual reset button should reset the parking spaces available to zero.

Equipment Used

Mitsubishi PLC
Proximity sensors
Barriers
Indicators
Coin collector

Actions Performed

Logic was designed in the GX Developer software.
PLC was installed at site.
All the inputs and outputs were connected.
Functionality of project was tested successfully.

Autonomous Green House SCADA System

Dec 2021 - Jan 2022

Problem Statement

Light Detection:

In the green home, a light sensor is fitted to continuously monitor the light. If the light level falls below the minimum set point, the lights should switch on to boost the light level; otherwise, they should remain off.

Moisture Detection:

The implanted moisture sensor continuously monitors the level of moisture in the soil. If the moisture level falls below the minimum set point, the irrigation valve should open to raise it; otherwise, it should remain closed. If the moisture level rises above the maximum, the heater should be turned on and the windows should be opened to dry the water and lower the moisture level; otherwise, neither should turn on.

Temperature Measurement:

The temperature within the green house is constantly monitored by a temperature sensor. If the temperature falls below the minimum set point, the heater should switch on to raise the temperature. When the temperature reaches or exceeds the maximum set point, the cooling system should activate to lower the temperature. When the temperature is at its ideal setting, the heater and cooler should be turned off.

Humidity Detection:

The humidity level within the green house is constantly monitored by a humidity sensor. If the humidity falls below the minimum specified point, the water sprinkler should activate to raise the humidity. When the humidity level reaches the maximum set point, the heating should turn on and the windows should be opened to reduce the humidity.

Emission of Carbon Dioxide:

When the button is pressed, a carbon dioxide emitter should activate. When the green house requires carbon dioxide, the emitter should turn on, and carbon dioxide should be sprayed into the space.

Opening of the Door:

In the green house, an automatic door has been fitted. When a person approaches the entrance, a sensor recognizes them and the door should automatically open. After eight seconds, the door should automatically close.

The number of people entering the green house should be kept track of by a counter. This counter should start when a sensor detects a person entering the green house and could be reset using a button.

Actions Performed

Logic was designed in the Codesys Software.
Codesys WebVisu software was used to design the SCADA.
Simulation was run and functionality of logic was tested successfully.

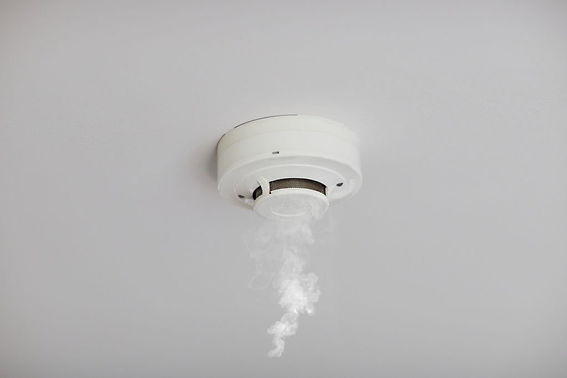

Automated Fire Detection System

Jan 2022 - Feb 2022

Problem Statement:

Fire detection system for a commercial plaza of three floors is to be designed in UK.

Smoke detectors should be used for the fire detection.
In case of fire detection on 1st floor Head of Stair AOV should open along with 1st floor damper, AOV and sprinkler, and the fan should RUN.
When the fire is detected on 2nd floor the stair AOV, 2nd floor AOV and sprinkler should open.
In case of fire on 3rd floor stair AOV, 3rd floor AOV and sprinkler should open.
When any of the output is ON it should remain ON until manual reset button is pressed.
Damper and AOV takes 90s to open or close, these should not be interrupted during opening or closing.
An HMI display showing all the inputs and outputs should be designed.
When any of the input or output is on, it’s status should be shown on the HMI.

Cause and effect table of the project is as follows.

Equipment Used

Siemens PLC with Input Card
Weintek HMI
Smoke Detectors
Dampers

Actions Performed

Logic was designed in TIA Portal Software according to requirements.
HMI Layout was designed in Easy Builder Software.
PLC along with input card and HMI were installed at site.
All the inputs and outputs were connected and project was tested successfully.

Cause and effect table - Fire detection system.png

Stepper Motor Control

Feb 2022 - Feb 2022

Problem Statement

A stepper motor is attached with lead screw with limit switch at one end to move an object to and fro.
When start button is pressed motor should rotate in clockwise direction and object should move 1000 steps in forward direction.
After reaching at end the motor should rotate in counter clockwise direction and object should move 1000 steps backward.
Object should return to home position when stop button is pressed, otherwise it should keep on moving to and fro.

Equipment Used

Domore PLC
Stepper Motor
Stepper Motor drive
Lead screw

Actions Performed

Logic was designed in the Domore software.
PLC was installed at site
All the inputs and outputs were connected.
Functioning of project was tested successfully.

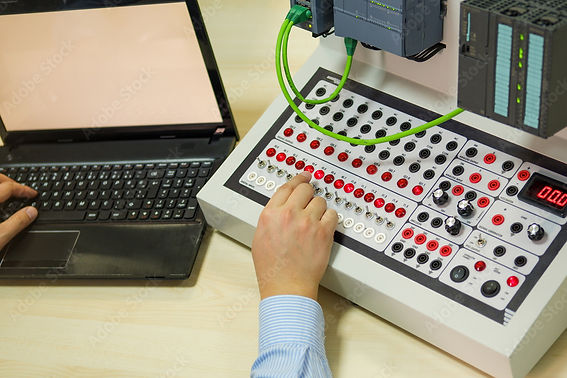

Multiple Projects

Dec 2018 - Jan 2020

Worked on many projects mentioned below,
> Worked on the Extension Modules of PLCs like RTD, Analog Input, Analog Output modules etc.
> Automated the Skew Unit of Finishing Machine using Fatek PLC and Weintek HMI.
> Set-up RS232, RS485 and Ethernet Communication.
> Transferred the Parameters of Lenze Baseline inverter to State-line inverter.
> Made Electrical Diagrams for all my different projects using Microsoft Visio.
